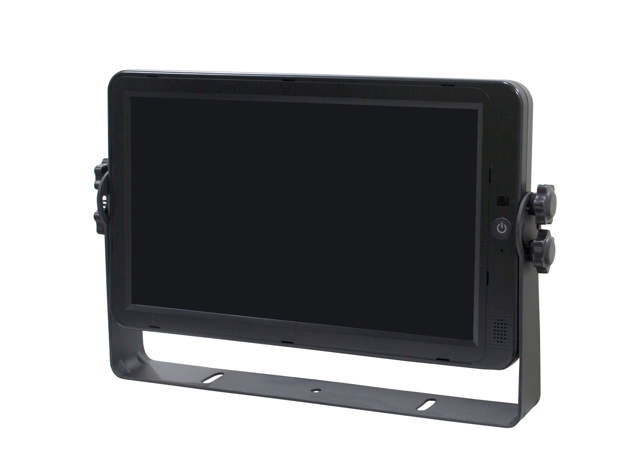

MONITOR 10,1" HD

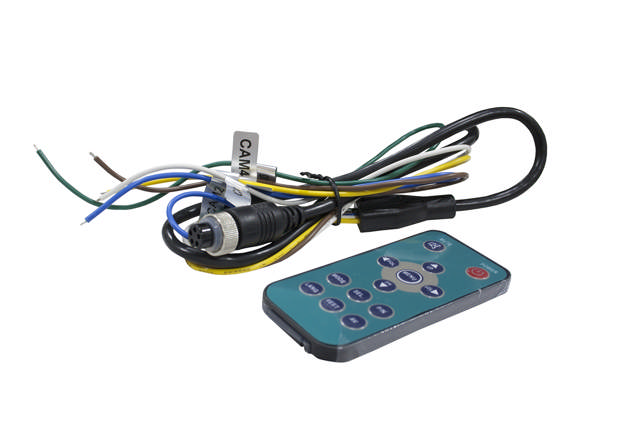

10.1" monitor for HD (1080p) rearview camera system. Touchscreen function. Ability to connect up to 4 different wired cameras. The screen is shareable and can show your connected cameras at the same time. Sun visors, brackets and remote control are included. Can be mounted with all GVP wired cameras of the 5577xx series.
Technical Specification:
Drive Voltage: 10-32V
Power Consumption: Max. 25W
Speaker, Type: Built-in
Speaker, Output Power: 1W
Wireless Transmission: No
Resolution: 1024 x 600 (1080p)
Contrast: 800:1
Brightness: 600 cd/m2
External Dimensions HxWxD: 159mm x 267mm x 30mm
Wiring rear camera: 5-pin (1 connection)
Wiring side/front camera: 4-pin (3 connections)
Sign in to view stock status and price
To view stock status and your prices, you need to sign in to your account.
| Connection | 4-pin kabel |
| Connections 4-pin (pcs) | 4 |
| Working temperatur | -30 - +70 |
| Width (mm) | 267 |
| Depth (mm) | 30 |
| Operating voltage (V) | 10 - 32 |
| Effective pixels | 1920 x 1080 |
| Color depth (bit) | 24 |
| Height (mm) | 159 |
| Contrast | 800:1 |
| Brightness (cd/m2) | 600 |
| Monitor size (") | 10.1 |
| Power consumption (W) | 25 |
| Wireless transmission | No |
| Resolution | 1080p |
| Name | MONITOR 10,1" HD |
| Article number | 557723 |
| Varumärke | GVP SAFETY |
