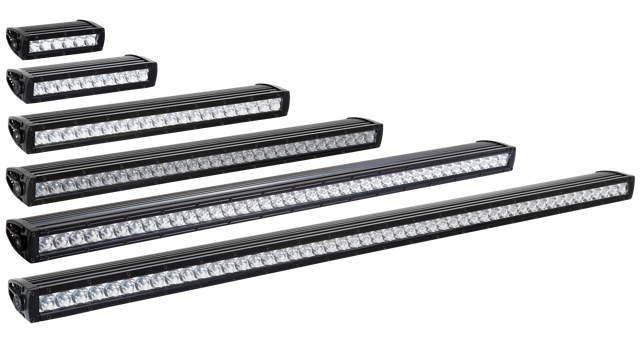

Work lights/headlights LED. Ramp in slim design with 5 W CREE LED. Available in different lengths with 6, 10, 20, 30, 40 and 50 diodes.

It is also possible to choose a number of different light patterns:
River: Work light that spreads the light wide but short.
Spot: Long light but narrow.
Combo: A mixture of spot and river where some lenses send the light far and some spread the light wide.

The ramps provide an output of 30–250 W and a luminous flux of 2,250–18,750 lumens. Aluminium housing with polycarbonate lens and lens.

Technical data:
Voltage: 9–36 V
Diodes: 6 x 5 W, 10 x 5 W, 20 x 5 W, 30 x 5 W, 40 x 5 W, 50 x 5 W
Theoretical lm: 2,700–22,500 Lumen
Real lm:  1,755–15,750 Lumen
Dimensions: Length: 194–1294 mm, Height: 48.5 mm, Depth: 86 mm
IP class: 68
Miscellaneous: EMC shielded, Article 5877202 approved as an auxiliary light according to R112.

PWM thermal management regulation. The diodes are switched on and off with a high frequency, which means that the diodes can be driven harder but with a lower heat generation, which extends the service life and gives a stronger light. The frequency is so high that the human eye does not have time to perceive the diode turning on and off.

Artikelytyp range (m @ 1 lux)
5877061 6 x 5 W SPOT 243 m
5877101 10 x 5 W SPOT 292 m
5877201 20 x 5 W SPOT 403 m
5877301 30 x 5 W SPOT 486 m
5877401 40 x 5 W SPOT 570 m
5877501 50 x 5 W SPOT 637 m
5877063 6 x 5 W FLOOD 150 m
5877103 10 x 5 W FLOOD 192 m
5877203 20 x 5 W FLOOD 263 m
5877303 30 x 5 W FLOOD 318 m
5877403 40 x 5 W FLOOD 369 m
5877503 50 x 5 W FLOOD 404 m
5877202 20 x 5 W COMBO 361 m
5877302 30 x 5 W COMBO 435 m
5877402 40 x 5 W COMBO 510 m
5877502 50 x 5 W COMBO 570 m
