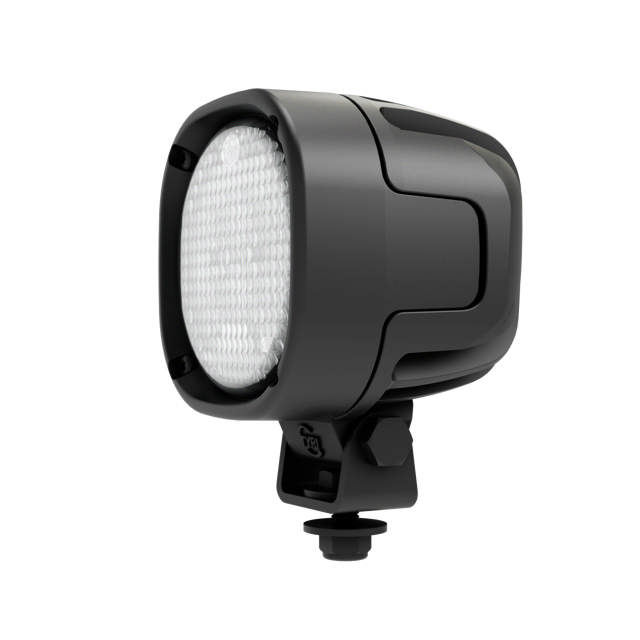

Another compact and energy-efficient headlight from TYRI. Despite its small dimensions, it has light performance on a par with significantly larger products thanks to efficient cooling optimisation and super-efficient optics. TYRI 0909 is produced in two versions - for 12 and 24V vehicles and is available with two different levels of luminous flux. 1400 lumens which is equivalent to a 70W halogen. The TYRI 0909 has the features you associate with a solid TYRI product - interchangeable lens, highest EMC class, temperature control, surge protection, polarity protection, can be washed with a high-pressure washer and has an integrated DT connector. The TYRI 0909-1400 with asymmetric lens is E-approved as a reversing light (5811098 and 5811099). Symmetrical light pattern produces a light pattern that spreads the light symmetrically. That is, the light pattern is the same even if the lamp is turned upside down. The asymmetrical light pattern sends the light straight forward and downwards but not upwards, which is an advantage if you do not want to dazzle your surroundings.

Technical data:
Housing Aluminum
Lens Polycarbonate
Diodes 6
Effective Lumens 1400 lm
Voltage 12/24 V
Power consumption 22 W
Cable Built-in connector DT04-2P
Dimensions (WxHxD) 90 x 90 x 85 mm
IP class IP69K
EMC approved R10 and EN55025 class 5

Art. No. 5811090 12 V Symmetrical
Art. No. 5811091 24 V Symmetrical
Art. No. 5811093 24 V Asymmetrical
Art. no. 5811099 24 V Asymmetric R23
