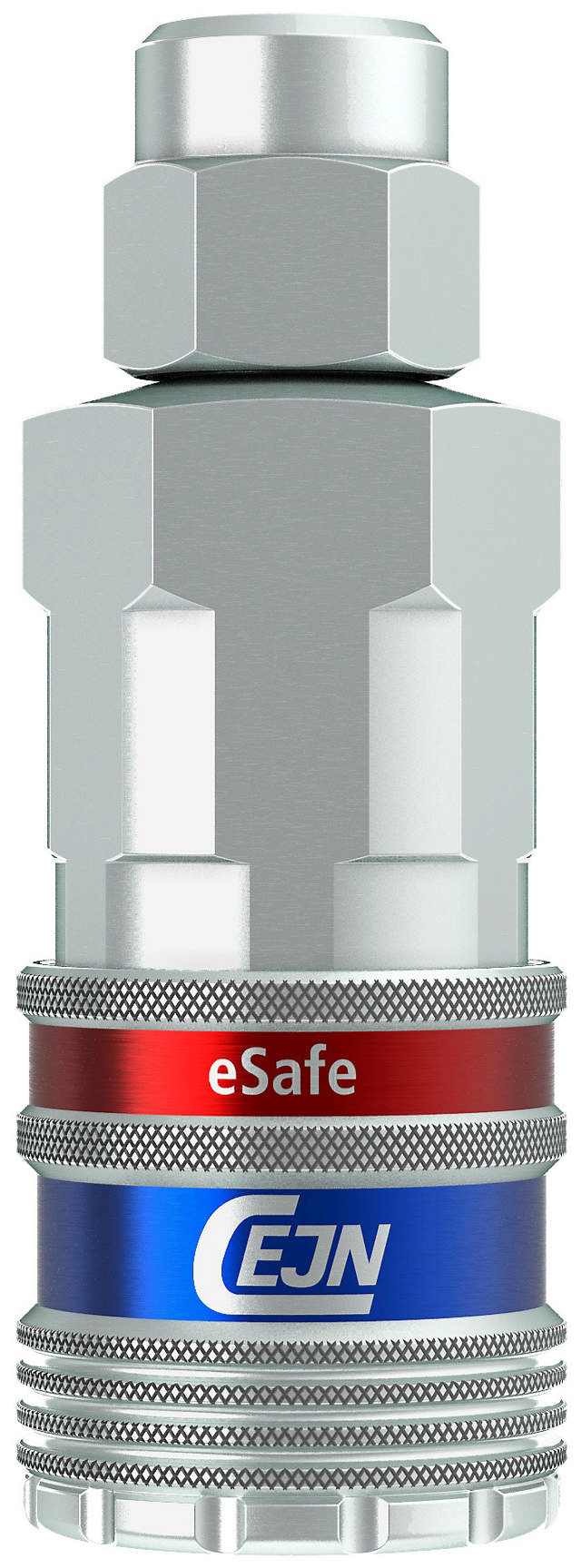

CEJN series 310. A universal compressed air coupling that is suitable for a wide range of applications, including all kinds of compressed air tools in workshops and industry. It has a unique valve for high flows. Its popularity has made it the European standard. The couplings are one-handed operated and have a long service life. External threads on the couplings and nipples have been pre-treated with thread sealing.

Material Galvanized steel
Nominal flow diameter: 7.6 mm
Air flow (l/min): 2100 l/min, measured at 6 bar pressure and 0.5 bar pressure drop
Max. working pressure: 16 bar
Min. burst pressure: 140 bar
Connection force: 70.7 newton
Temperature range: -20 °C — +100 °C
